Roll Top Fence

black wire cloth

Black Wire Mesh

Quick Details:
    • Usage:parks, schools, sports stadiums, airports
    • Material: High-quality galvanized wire, low-carbon steel wire
    • Surface :powder coated , power pinted
    • MOQ: 50sets
    • Type:Fencing, Trellis & Gates
    • Color: green ,red ,yellow black ,etc.
    • Width: 0.9m-2.4m
    • Length: 2.4m & 3m
    • Packing:pallet
    • Delivery Time:15-25 days after receiving the deposit



DETAIL INFORMATION:

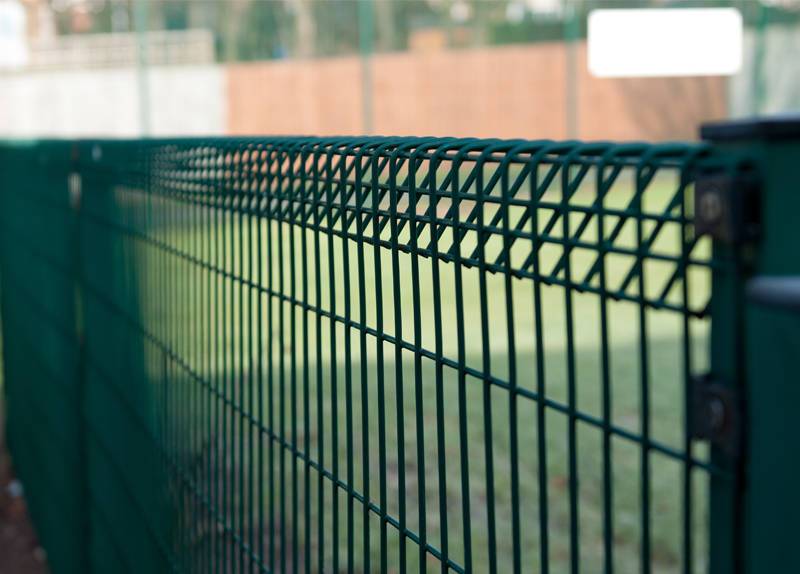

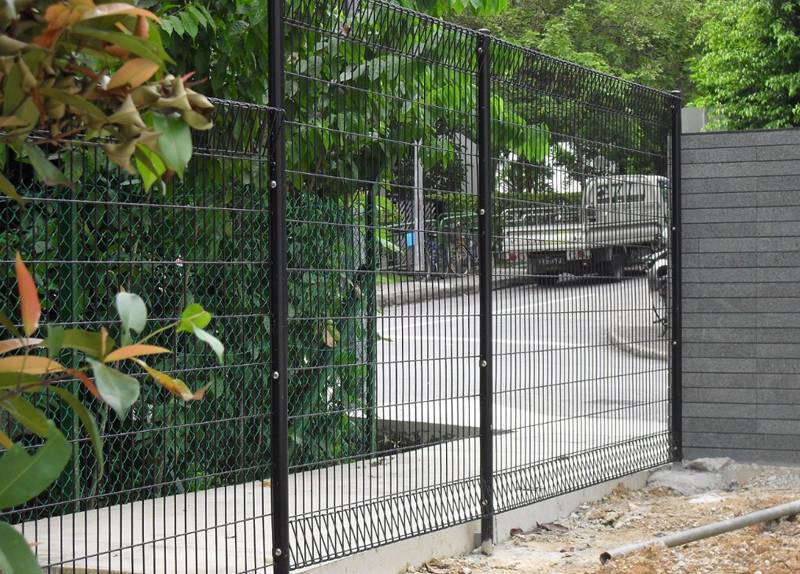

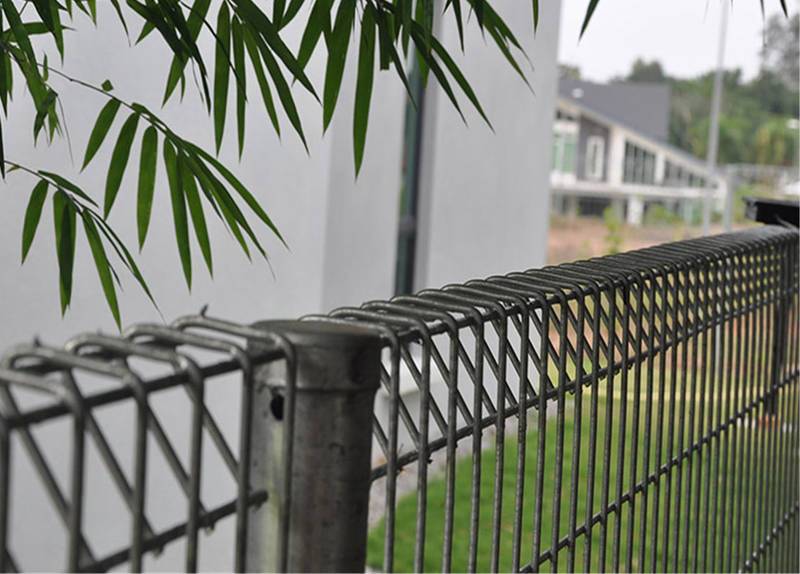

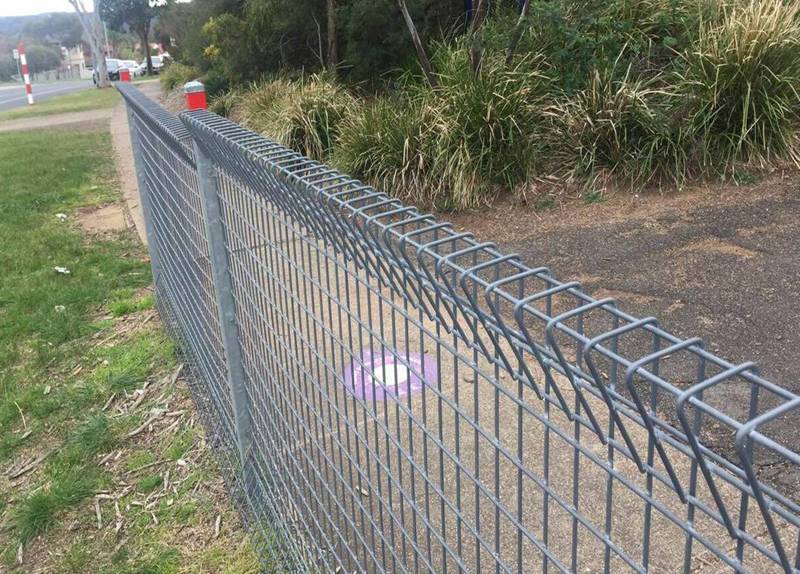

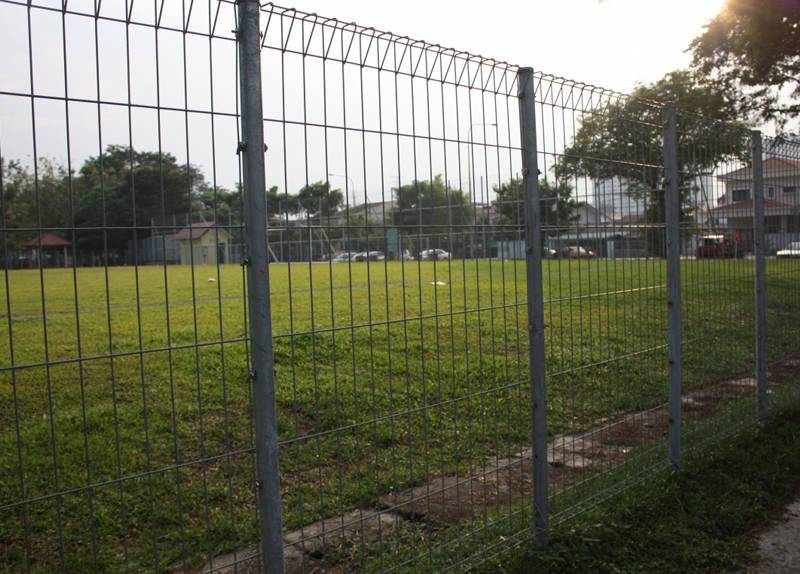

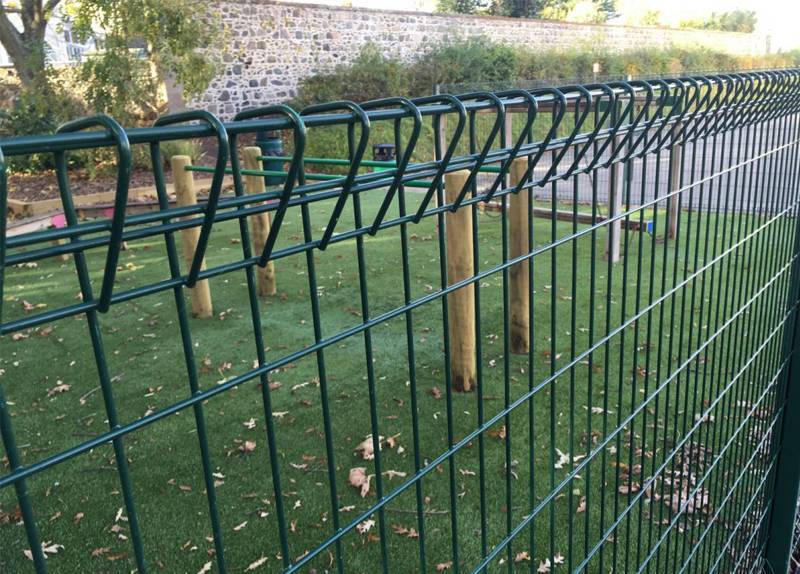

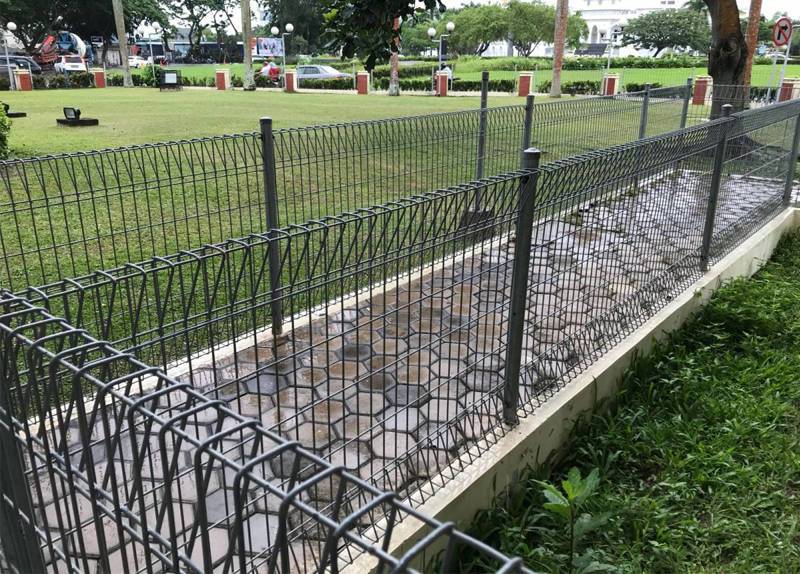

Roll Top mesh fence is also called BRC fence, has a unique and use-friendly closed and rolled beam section at the top and

bottom edge of each panel with no sharp or raw edges, usually made from heavy 5mm wires, which results in maximum rigidity and better safety. It is suitable where safety is a consideration, such as schools, sports, parks and playgrounds, and company

premises.

Roll Top Fence Specification:



Panel size Post Surface Coating
Panel height Panel width Wire Mesh holes Height(mm) Post Section Hot Dipped Galvanized (505g/m²) OR                Electric Galvanized + Polyester Powder Coated(All colors in Ral)
900mm 2.4m & 3m 4.0 & 5.0mm 50×150mm 50×200mm 1500 Square 60×60mm 60×80mmRound φ48mm φ60mm
1200mm 2.4m & 3m 4.0 & 5.0mm 1800
1500mm 2.4m & 3m 4.0 & 5.0mm 2100
1800mm 2.4m & 3m 4.0 & 5.0mm 2400
2400mm 2.4m & 3m 4.0 & 5.0mm 3000
Above are general specifications, others are available.
