Gabion box

2018-08-10

gabion box

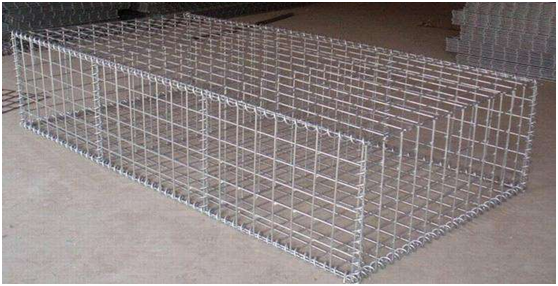

Gabion box is the most ideal material for slope stabilization, erosion control, channel lining and reinforcing, bank protection, earthwork structural unit, etc.. After filled with rocks, gabion box can be placed to the project site for form a structures for retaining walls for commercial, industrial and road projects. The construction of double twisted hexagonal wire mesh reinforced by the selvedges of heavier wire makes gabion box a flexible yet be able to keep it shape. The rectangular shape along with proper diagram enables the gabion build a regular in any project site. Pre-assembled gabion units for fast installation save tremendous workforce and time, which will benefit the project process a lot. Except for woven gabion mesh, we are also experienced at welded gabion box.
Gabions are used in many situations including the stabilization of earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls. They can be manufactured in welded mesh or woven wire. Welded mesh gabions are faster to erect and do not need tensioning. This allows them to keep their shape, to be free from bulges and depressions and fit easily against the wall. It is possible to cut holes in them if needed to pass pipes etc through and they can be machine filled.
Welded Mesh Gabions are manufactured from Galfan Wire or triple life coated.
3" x 3" (76.2mm x 76.2mm) x 3, 4 or 5mm Galfan coated (95% Zinc 5% Aluminium for up to 4 times the life of a galvanised finish, see attached data sheet for comparison with standard galvanising) welded mesh Gabion baskets wire as per EN 10218-2. All mesh panels used to produce our baskets are European sourced and conform to EN10244-2 with a tensile range of 540-770N/mm2, steel grade 0.10% Carbon max, Weld sheer strength minimum 75% of the tensile strength of the wire.
We also supply gabion baskets in the same specification as the above but in Green Nature coated. Full specification 3” x 3” (76.2mm x 76.2mm) x 2.77/3.22mm 4life “4 times the life of a galvanized finish", then Nature coated welded mesh. Nature coated to an overall diameter or 3.22mm, average coating thickness is no less than 0.25mm, Nature" coating is based on PE and is superior to PVC in UV resistance or behaviour in cold temperatures. Main advantage is the environmental aspects including storage, use and recycling. Apart from that "Nature" is comparable to PVC. All mesh panels used to produce our baskets are European sourced from a European supplier IS0 9001, ISO4001, OHSAS 18001 registered and conform to EN10244-2 with a tensile range of 540-770N/mm2, steel grade 0.10% Carbon max, Weld sheer strength minimum 75% of the tensile strength of the wire.
