Features:
High Filtration Rate and Permeability
High dirt holding capacity and filtering accuracy.
High heat and corrosion resistance.
Low pressure loss and large flow.
Can be welded and machined because of its large filter area.
Easy cleaning and long service life.
1. Polymer filtration and polyester melt purification.such as polyaramides polyesters polypropylene polyamide Nylon.
2.Viscose rayon filtering.
3.Filtration of powders and trapping particulates from vacuum and compressed air lines.
4. Filtration of refining process pre-filtration of ultrafilter.
5. Electronic high temperature gas dust removal.
6. Liquid purification in pharmaceutical petroleum biology and beverage industries.
7. Vacuum pump protection filter filter membrane support Catalyst filter media.
8. Airbags of cars and fuel filtration of aircraft and ships.
9. Hydraulic system filtration
Material: SUS304 SUS316 SUS316Letc
Length:100-1500mm which could be customized.
Filter diameter:25mm32mm40mm50mm65mm80mm100mm150mm180mmetc
Filter rating:1-300um
Operating temperature range:-200℃~600℃
Packing:With carton or wooden box

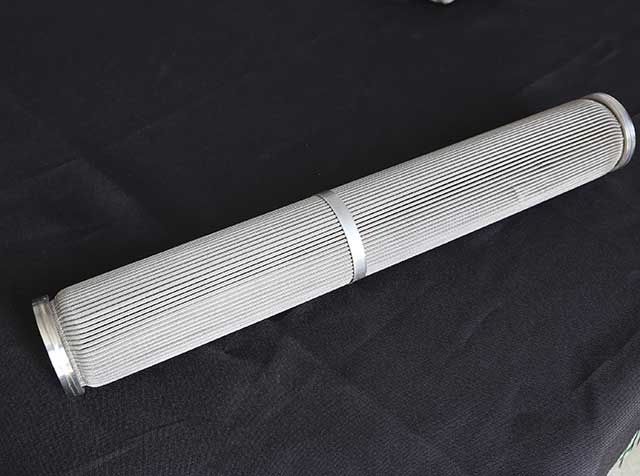

Sintered filter is generally divided into 5 layers including protection layer filter layer and reinforcement mesh.
Filter Rating
(u) |
Protection
layer |
Protection
layer |
Filter
layer |
Reinforcement
Mesh |
Reinforcement
Mesh |
Thickness
(mm) |
Permeability
(L/min/cm2) |
1 |
200 |
400x3000 |
200 |
12x64 |
64x12 |
1.7 |
1.81 |
2 |
100 |
325x2300 |
100 |
12x64 |
64x12 |
1.7 |
2.35 |
5 |
100 |
200x1400 |
100 |
12x64 |
64x12 |
1.7 |
2.42 |
10 |
100 |
165x1400 |
100 |
12x64 |
64x12 |
1.7 |
3.00 |
15 |
100 |
165x1200 |
100 |
12x64 |
64x12 |
1.7 |
3.41 |
20 |
100 |
165x800 |
100 |
12x64 |
64x12 |
1.7 |
4.50 |
25 |
100 |
165x600 |
100 |
12x64 |
64x12 |
1.7 |
6.12 |
30 |
100 |
400 |
100 |
12x64 |
64x12 |
1.7 |
6.86 |
40 |
100 |
325 |
100 |
12x64 |
64x12 |
1.7 |
7.10 |
50 |
100 |
250 |
100 |
12x64 |
64x12 |
1.7 |
8.41 |
75 |
100 |
200 |
100 |
12x64 |
64x12 |
1.7 |
8.70 |
100 |
100 |
150 |
100 |
12x64 |
64x12 |
1.7 |
9.10 |
150 |
50+100+50+30+30+100+50 |
2.0 |
25.00 |
200 |
40+80+40+20+40+80+40 |
2.0 |
26.00 |
