Gabion Box

2021-08-16

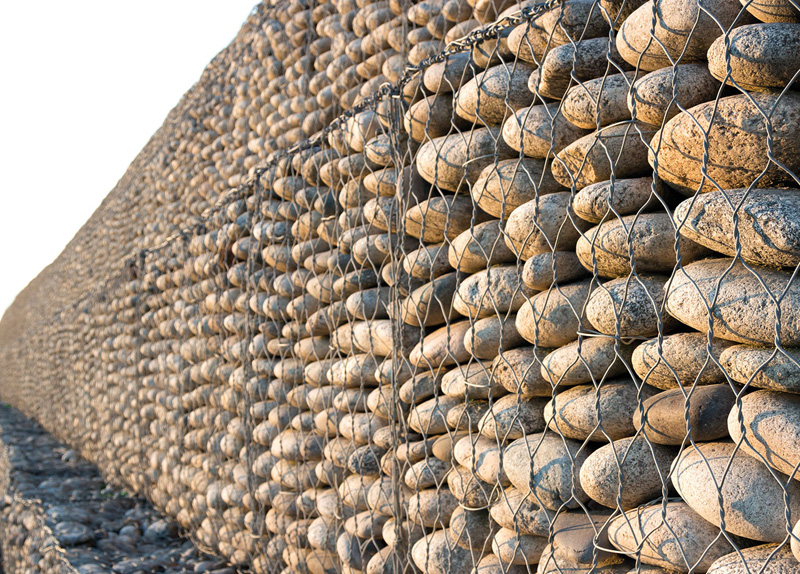

Gabion Box are multiple twisted hexagonal woven galvanized or PVC coated steel wire mesh compartment baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.

Gabion Box

Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3

zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2

opening: 6*8cm,8x10cm,10*12cm

mesh wire :2.2mm,2.7mm,3.0mm



Applications:

• Control and guide of water or flood

• Flood bank or guiding bank

• Prevention of rock breaking

• Water and soil protection

• Bridge protection

• Strengthening structure of soil

• Protection engineering of seaside area

• Seaport engineering

• Isolation walls

• Protection of road



What size and specification you want, and we will do as your customized, if you don’t know it, and we have the expertise to help you deal with choice.
