Layer Cage

Features:

Special Advantages Of Qunkun Chicken Cage System

1.The chicken house is designed full automatic operation with auto feeding system, auto nipple drinking system, auto egg-collection system, auto manure removing system, cooling and ventilation systems, etc.

2.Nipple drinkers: stainless steel nipple drinkers, The professional poultry water pipe is made of good PVC material ,Length 2m/pc.,guaranty is more than 15 years, without leakag and long service life.

3.the silver white feeding trough length is 2m/ pc, made from concentrate pure PVC, Loading capacity is more than 60kg/ pc

4.Excellent farm design and build experience for your special layout design requirements, IT IS FOR FREE !

5. Easy to install and operate - No need professional technicians service, we will provide the installing videos for your reference.we will teach you step by step.

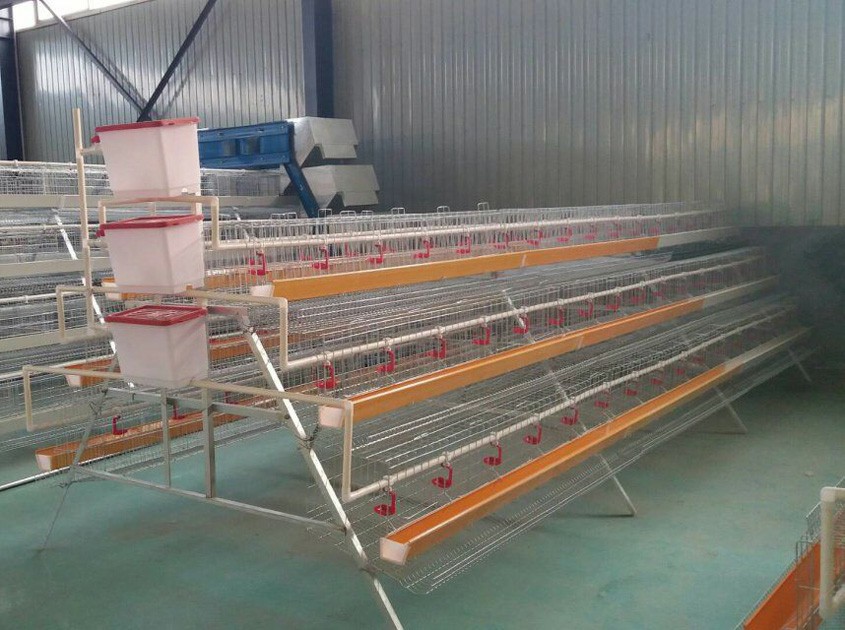

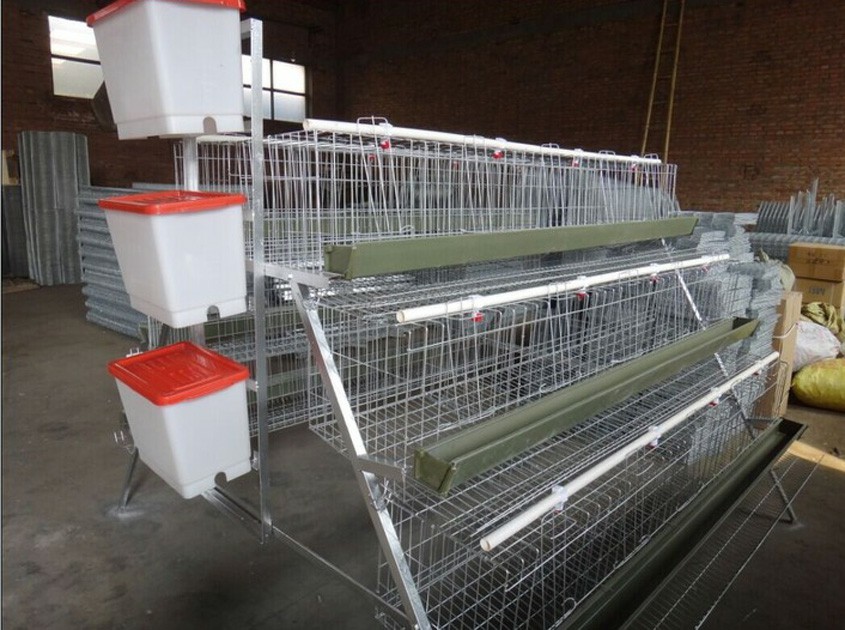

Layer cage is also known as battery cage or poultry cage, which is used for rearing egg-laying chickens after growing up to 12 weeks or 16 weeks .

Material	High quality low carton steel wire (Q195/Q235)
Surface Treatment And Service Life	Cold galvanized chicken cage (6-year to 10-year) Zinc coated 60g
	Hot galvanized chicken cage (20-year to 30-year) Zinc coated 500g
	Green PVC coated chicken cage (20-year to 30-year)
Connection:	welding

Specifications:

“A” Type Chicken Cage Specifications
Type	Tier & Nest	Size (L x W x H)	Nos of cells per Tier	Nos of cells per Set	Nos of hens per Nest	Nos of hens per Set
A Type	3 Tiers, 4 cells	1.88 x 2.1 x 1.5m	8	24	4	96
	3 Tiers, 4 cells	2.0 x 2.1 x 1.5m	8	24	4	96
	3 Tiers, 5 cells	1.95 x 2.1 x 1.5m	10	30	3 or 4	90 or 120
	3 Tiers, 5 cells	2.15 x 2.1 x 1.5m	10	30	4	120
	4 Tiers, 4 cells	1.88 x 2.4 x 1.95m	8	32	4	128
	4 Tiers, 5 cells	1.95 x 2.4 x 1.95m	10	40	3 or 4	120 or 160
	4 Tiers, 5 cells	2.15 x 2.4 x 1.95m	10	40	4	160
	Not Recommended, because the cage is very high and not convenient to manage.
	5 Tiers, 5 cells	1.95 x 2.8 x 2.5m	10	50	3 or 4	150 or 200
Fitting and Accessories	Pvc feeding trough,nipple drinker,water pipe,water tank,reducing valve,cage frame, water tank frame, pliers and another fittings ;						Pvc feeding trough,nipple drinker,water pipe,water tank,reducing valve,cage frame, water tank frame, pliers and another fittings

Note: Special size and specification can be customized.
