Monel Wire Mesh

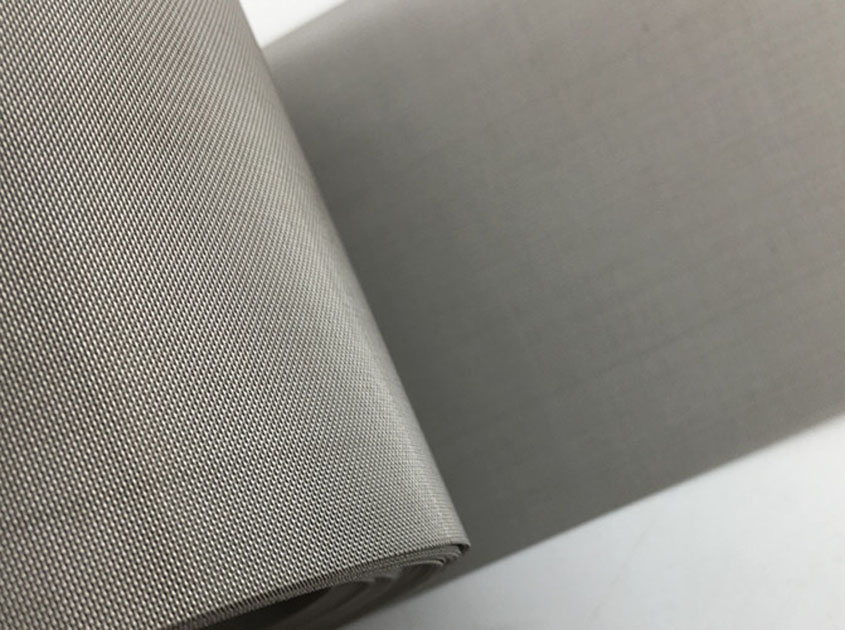

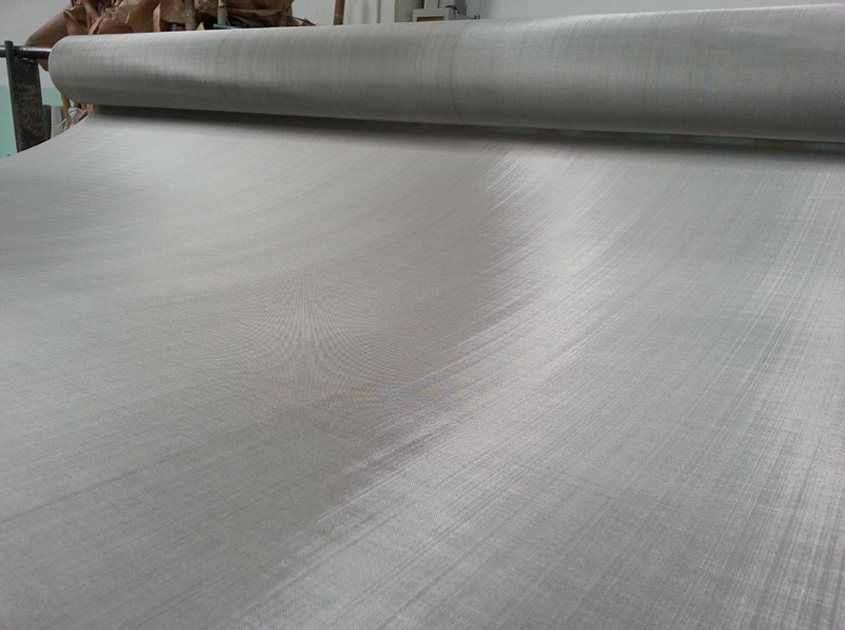

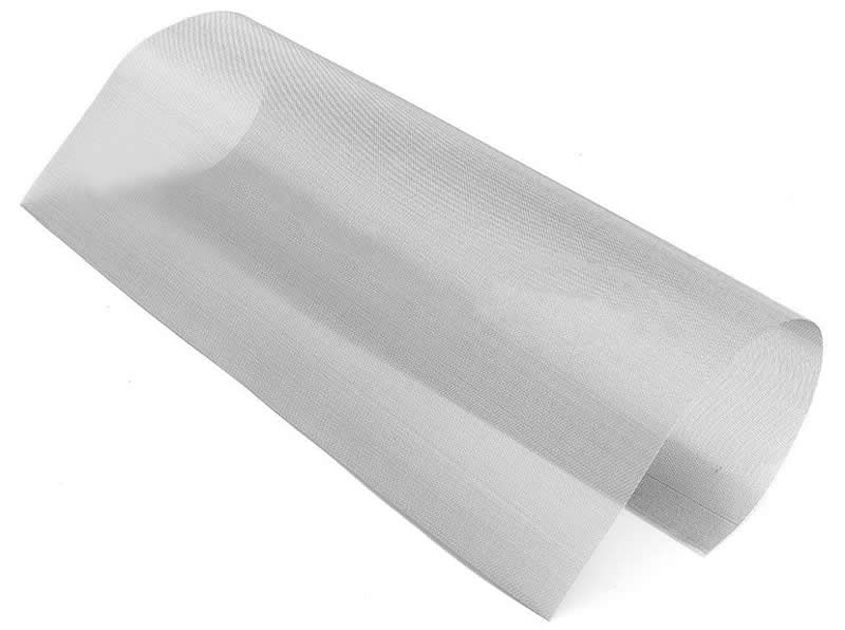

Monel wire mesh

Monel wire mesh, similar to Inconel wire mesh, is also a kind of woven mesh, which is woven from nickel-based alloy wire. Monel is an alloy of chemical elements such as nickel and copper. According to different chemical elements, Monel wire mesh has Monel 400 and Monel K500 materials.

Alloy 400 has excellent corrosion resistance in flowing seawater. It also resists stress corrosion cracking. Alloy 400 is the most widely used monel material.

K500 alloy also has excellent corrosion resistance like Monel 400, but Monel K500 has added aluminum, which allows Monel K500 to provide greater tensile strength and hardness than Monel 400.

Monel wire mesh includes fine weave mesh with mesh number greater than 80 mesh and coarse mesh mesh with mesh number not more than 80 mesh.

Monel wire mesh Quick Details:

Usage:pressure vessel, boiler feed water heater equipment, oil and chemical pipelines, containers, towers, tank, valves etc.

Type: Monel

Status: Soft State

Wire Diameter: 0.025-1.5 mm

Wide: 1-2m

Lenth:1-100m

Thickness: Metal Fiber

Mesh: 1-200 mesh

Specification: 1m x 30m

Packing: as your required

Features:

1. Corrosion resistance in the sea water.

2. Corrosion resistance in the chemical solvent.

3. Corrosion resistance in the acidoid, such as hydrofluoric acid, phosphoric acid.

4. Corrosion resistance in the alkaline matter.

5. Resist to stress corrosion cracking.

6. High tensile strength.

7. Excellent hardness.

8. Long lasting and durable.

Material	C	Mn	Si	S	Ni	Cu	Fe
Monel 400	≤0.30	≤2.00	≤0.50	≤0.024	≥63	28.0~34.0	≤2.5

Material	C	Mn	Si	S	Ni	Cu	Ti	Al	Fe
Monel K500	≤0.25	≤1.50	≤0.50	≤0.010	≥63	27.0 ~33.0	0.35 ~0.85	2.30 ~3.15	≤2.0

Mesh (Wires/ in.)	Wire diameter (in.)	Width of opening (in.)	Open area (%)
8 × 8	0.0280	0.0970	60.20
10 × 10	0.0250	0.0750	56.30
12 × 12	0.0230	0.0600	51.80
20 × 20	0.0160	0.0340	46.20
30 × 30	0.0130	0.0203	37.20
40 × 40	0.0100	0.0150	36.00
60 × 60	0.0072	0.0090	30.50
80 × 80	0.0055	0.0070	31.40
100 × 100	0.0045	0.0060	30.30
120 × 120	0.0036	0.0047	32.26
150 × 150	0.0026	0.0041	37.20
200 × 200	0.0021	0.0533	33.60

Monel wire mesh Quick Details:
