Features:
1. Good ductility.
2. High tensile strength.
3. Oxidation resistance.
4. Sulfur resistance.
5. Permeability resistance.
6. Superior elongation.
7. Non-magnetic.

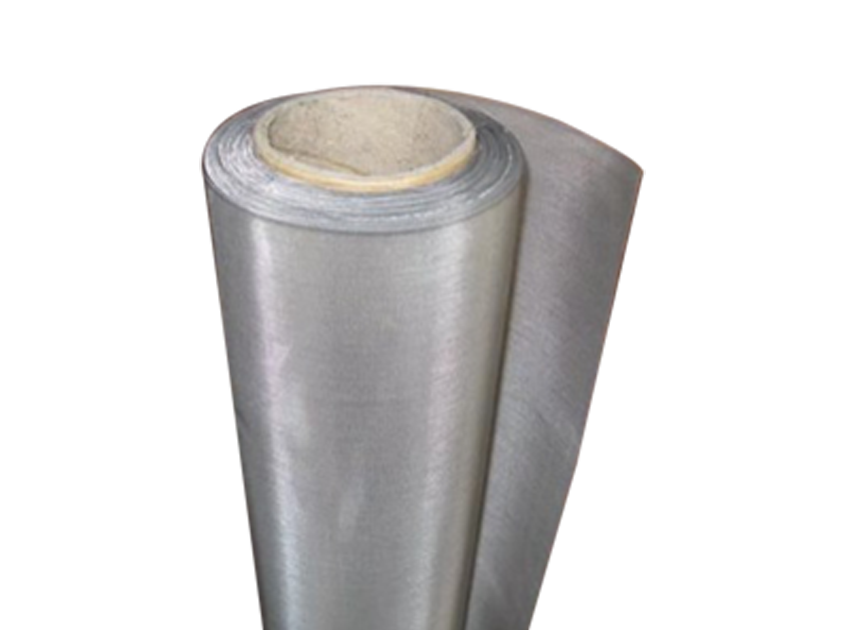

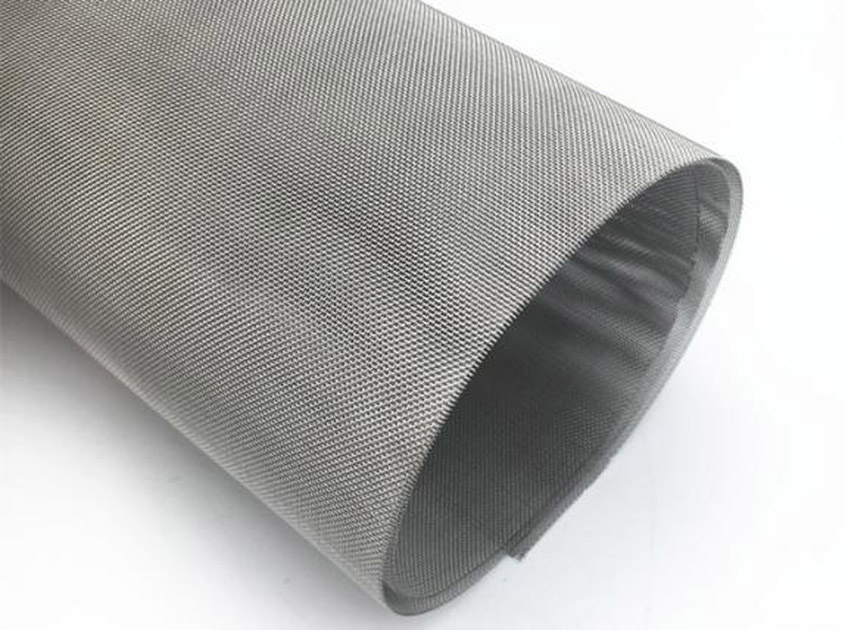

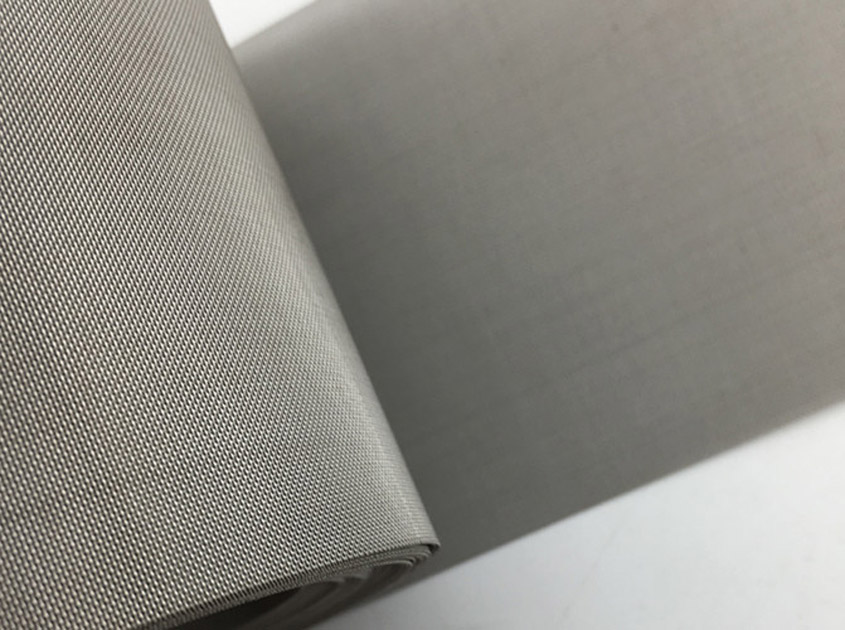

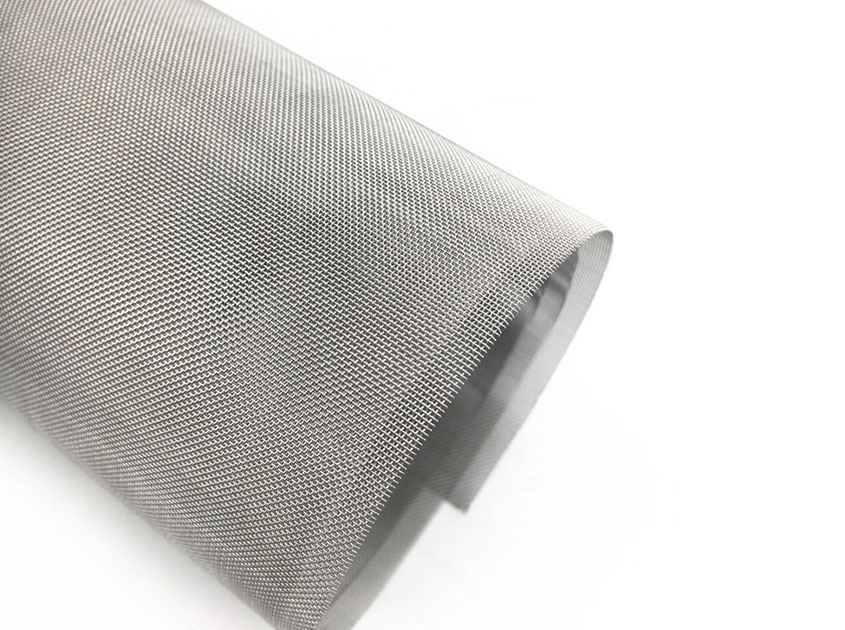

Nichrome wire mesh is widely used in the aerospace, shipbuilding, war industry, chemical machinery, electric power, desalination, medical apparatus and instruments.
Material: Nichrome wire Cr20Ni80, Cr15Ni60, Cr20Ni35
Mesh Count: 1-100MESH
Width: 0.1m-1.5m Length: 30m, special sizes can be customized
Weave: Plain weave, Twill weave
Features of Nichrome Wire Mesh:
Nichrome wire mesh has following features: Good ductility. High tensile strength. Oxidation resistance. Sulfur resistance. Permeability resistance. Superior elongation. Non-magnetic. High temperature resistance.
Grade |
% |
Ni |
Cr |
Fe |
Al |
Mn |
Si |
C |
P |
S |
Cr20Ni80 |
Min |
Bal |
20 |
- |
- |
0.6 |
0.75 |
0.08 |
0.02 |
0.08 |
Max |
23 |
1.0 |
0.2 |
1.6 |
Cr15Ni60 |
Min |
55 |
15 |
Bal |
- |
- |
0.75 |
0.08 |
0.02 |
0.15 |
Max |
61 |
18 |
0.5 |
0.6 |
1.6 |
Cr20Ni35 |
Min |
34 |
18 |
Bal |
- |
1.0 |
1 |
0.1 |
0.03 |
0.025 |
Max |
37 |
21 |
0.5 |
3 |
Chemical Composition:
Applications of Nichrome wire mesh:
Nichrome wire mesh is widely used in the aerospace, shipbuilding, war industry, chemical machinery, electric power, desalination, medical apparatus and instruments.
Specifications:
%0
Mesh (Wires/ in.) |
Wire diameter (in.) |
Width of opening (in.) |
Open area (%) |
4 × 4 |
0.063 |
0.1870 |
56.00 |
8 × 8 |
0.047 |
0.0780 |
38.90 |
8 × 8 |
0.025 |
0.1000 |
64.00 |
10 × 10 |
0.035 |
0.0650 |
42.30 |
16 × 16 |
0.020 |
0.0430 |
46.20 |
20 × 20 |
0.020 |
0.0300 |
36.00 |
20 × 20 |
0.013 |
0.0370 |
54.80 |
20 × 20 |
0.016 |
0.0340 |
43.20 |
26 × 26 |
0.013 |
0.0260 |
44.00 |
40 × 40 |
0.010 |
0.0150 |
36.00 |
40 × 40 |
0.0070 |
0.0180 |
51.80 |
80 × 80 |
0.0055 |
0.0070 |
31.40 |
200 × 200 |
0.0021 |
0.0029 |
33.60 |
325 × 325 |
0.0014 |
0.0017 |
29.70 |
