Features:
Aesthetic appearance
Cost effective solution
Rolled top and bottom beam for rigidity and safety
Quick and Easy install
Anti-rust and anti-corrosion
Suitable where safety is a consideration
Durable and well structured
Excellent through vision
10-Year limited warranty
Customization options

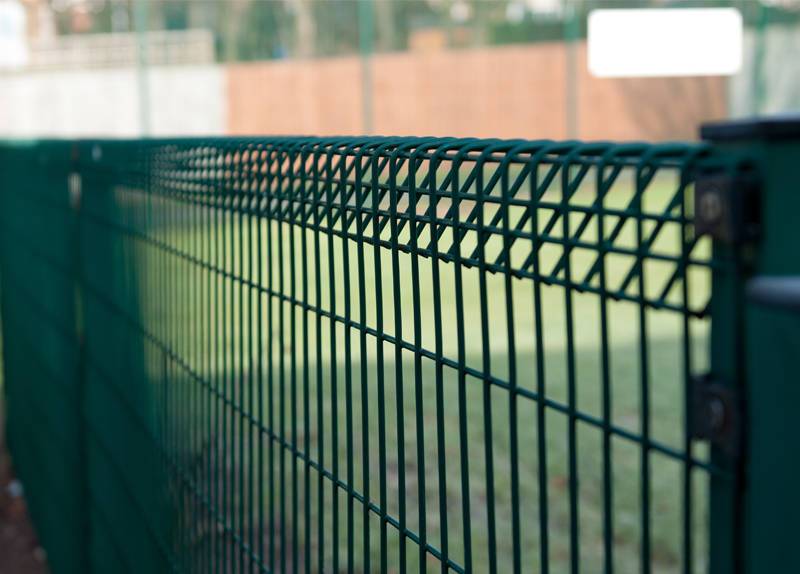

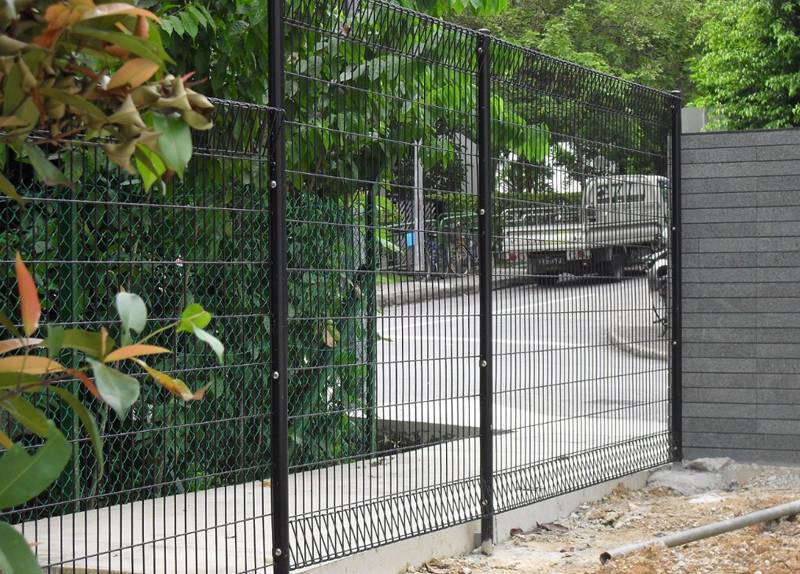

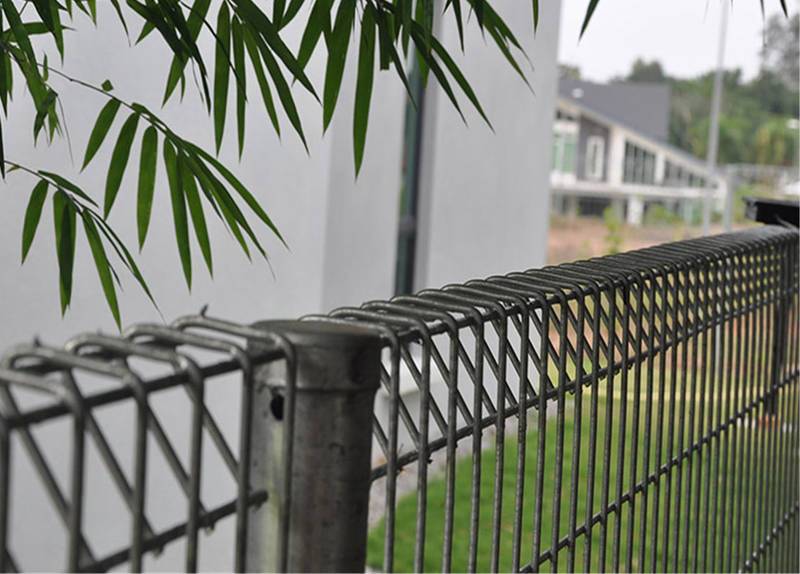

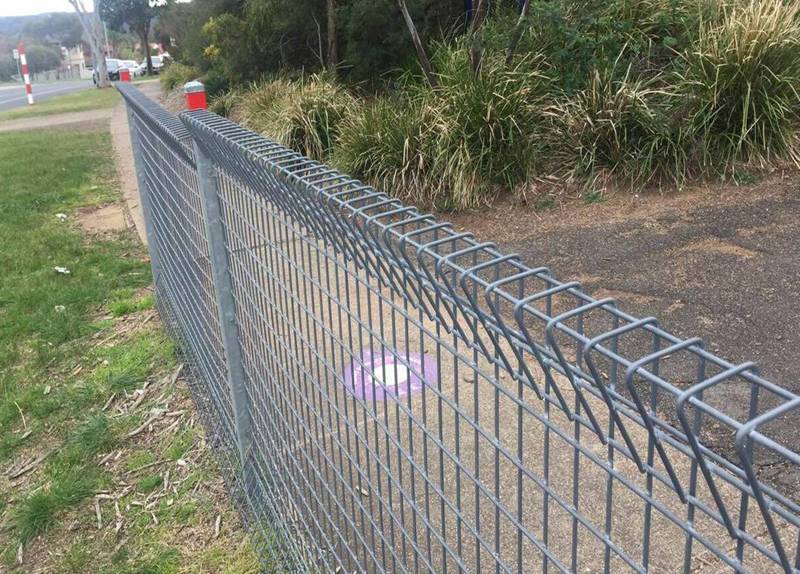

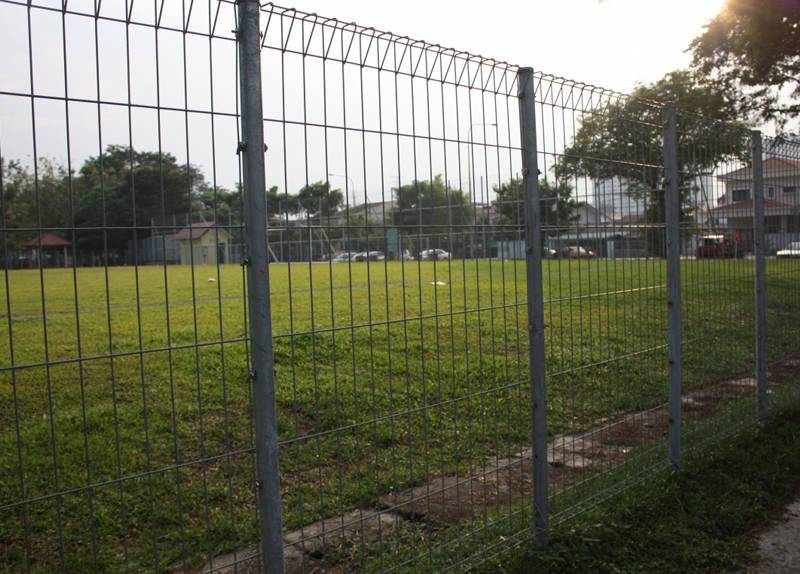

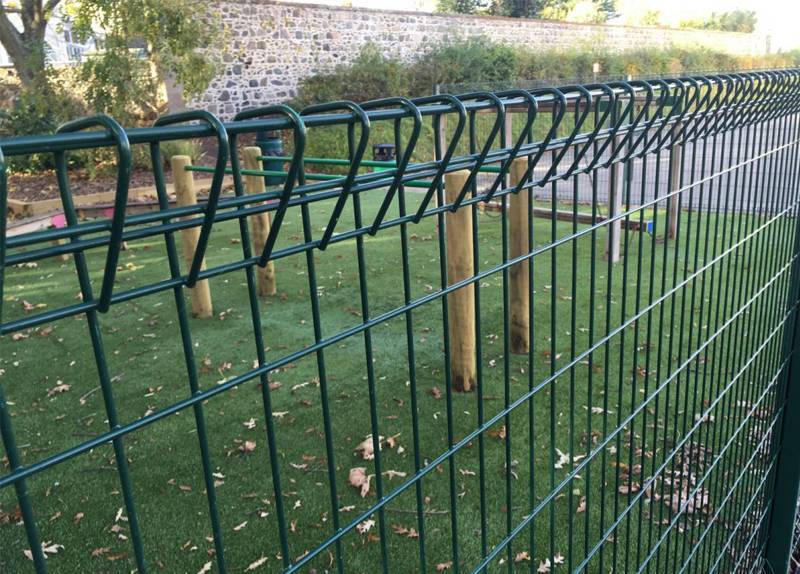

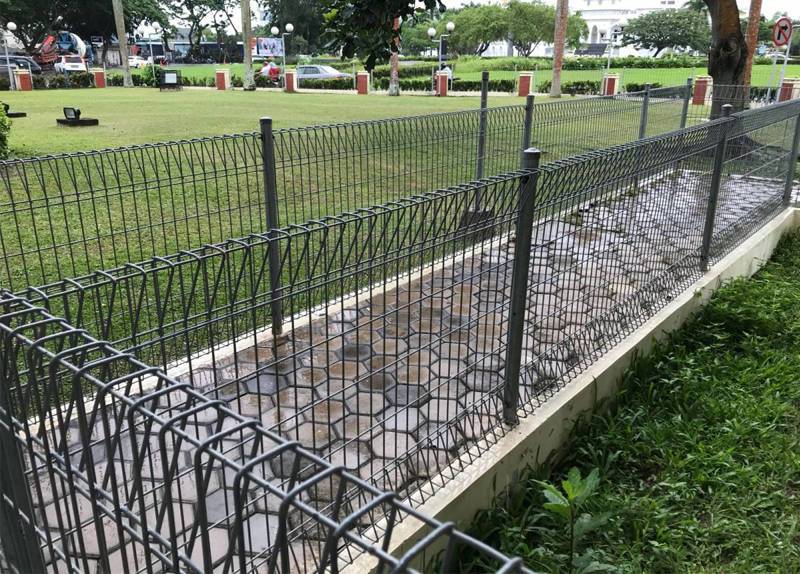

Roll top fence panels is suitable where safety is a consideration, such as schools, sports, parks and playgrounds, and company premises.
Post
The posts for BRC fence, roll top fencing panels are manufactured from hot dip galvanized 60 x 60 x 2.0mm or 60×80mm( others are available) square hollow steel section and are available from stock to suit fence heights of 1.2m or 2.4m. Longer posts for higher fences can be supplied. Panels are secured to the posts with steel clips and 6.0mm galvanized security fixings screwed into threaded inserts in the posts. All posts are supplied with protective plastic end caps.
Gates
Swing gates are available to suit standard height in single and double leaf configuration with a twin wire welded mesh in-fill to match the your Roll top fence. Special sized swing gates or sliding gates can be manufactured to suit individual customer requirements.
Colors
Linkland welded mesh fence can supply all colors according to international standard RAL Colors, the popular colors as below:
ACCESSORIES
Metal clamp / anti-UV plastic clamp
Metal cap / anti-UV plastic cap
Coating
The roll top fencing panels are manufactured using galvanized steel wire with super-durable powder coating assures a long service life for the fence system. Our powder coating material is the top brand like AkzoNobel, which provides the industry's Highest Weather-ability and Gloss Retention in U.V. exposure.
Specifications:
|
Panel size |
Post |
Surface Coating |
|
Panel height |
Panel width |
Wire |
Mesh holes |
Height(mm) |
Post Section |
Hot Dipped Galvanized (505g/m²)
OR
Electric Galvanized + Polyester Powder Coated
(All colors in Ral) |
|
900mm |
2.4m & 3m |
4.0 & 5.0mm |
50×150mm
50×200mm |
1500 |
Square
60×60mm
60×80mm
Round
φ48mm
φ60mm |
|
1200mm |
2.4m & 3m |
4.0 & 5.0mm |
1800 |
|
1500mm |
2.4m & 3m |
4.0 & 5.0mm |
2100 |
|
1800mm |
2.4m & 3m |
4.0 & 5.0mm |
2400 |
|
2400mm |
2.4m & 3m |
4.0 & 5.0mm |
3000 |
|
Above are general specifications, others are available. |
Note: Special size and specification can be customized.
